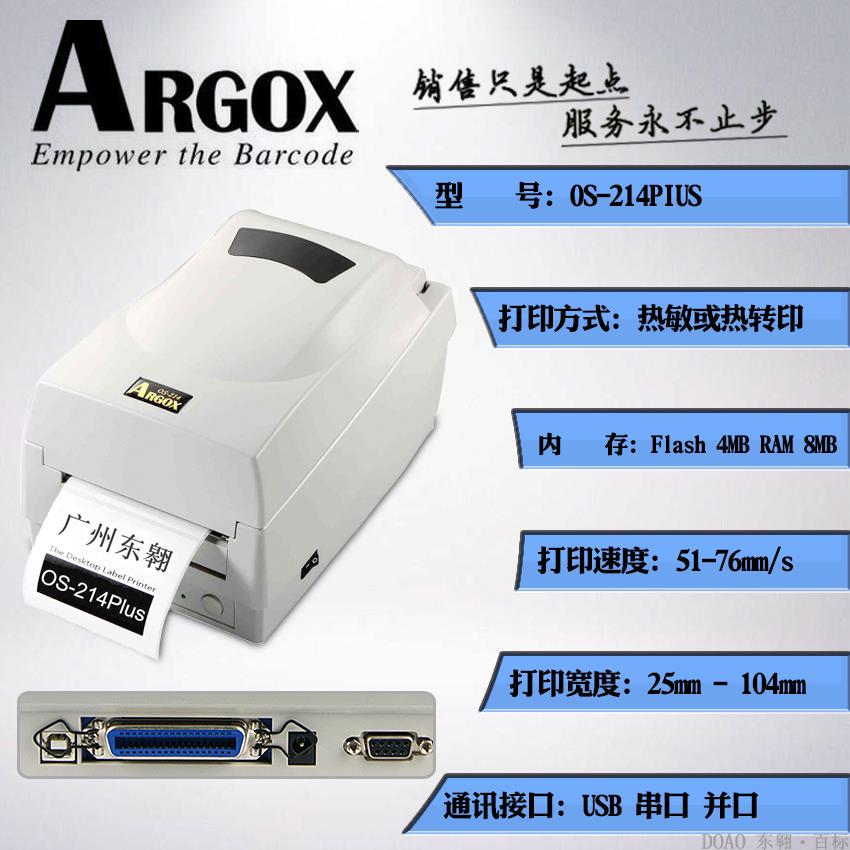

Printing mode heat sensitive/heat transfer
Resolution 203dpi (8 point/mm)
Print width Max4.1 (104mm)
Print speed up to 4ips
Print length Max 43 (1092 mm)
Memory 8MB SDRAM 4MB Flash ROM
CPU 32-bit microprocessors
Communication interface and serial port of USB
Display two LED lights
The interface 1 button
The label sensor is left in the left
The operating panel LED indicator lights x2, press new x1
Font international standard character set
Five types of in-built digital fonts can range from 0.049 to 0.23 "H (1.25 mm ~ 6.0 mm)
All fonts can be enlarged to 24x 24
4 printing directions 0 ~ 270 rotation
Downloadable Windows compatible True Type Soft Fonts
One dimensional barcode PPLA: Code39 Code93, Code128 / subset of A, B and C, Codabar, Interleaved
2 of 5, UPC A/E / 2 and 5 add - on, EAN 13/8, UCC/EAN -128, UCC/EAN 128
Random weight, Postnet, Plessey, HIBC, Telepen, FIM
PPLB: Code39 Code93, Code128 / subset of A, B and C, Codabar, Interleaved
2 of 5, UPC A/E / 2 and 5 add - on, EAN 13/8, UCC/EAN -128, Postnet,
Matrix 2 of 5, Code minus 128UCC
Two dimensional barcode
PPLA/PPLB: Maxicode, PDF - 417, Data Matrix (ECC200 only for X2000V PPLZ)
Graphic PPLA/PPLB: PCX, BMP, IMG, HEX, GDI PPLB: PCX, Binary raster, GDI
Instruction set PPLA, PPLB
software
Windows driver (Windows 7 / Win 8 / Win 10/vista/XP)
Label making software - BarTender
The paper carrier is continuous or spaced/rolled or accordion/hot, copper plate, board/tag, label and ticket... Etc.
Maximum width: 4.25 "(108 mm) minimum width: 1.0" (25.4 mm)
Thickness: 0.0025 ~ 0.01 "(0.0635 mm - 0.254 mm)
Maximum outer diameter: 4.3 "(109 mm) shaft size: inner diameter 1" (25mm)
Carbon with Wax, Wax/Resin, Resin
Carbon width: 2, 4
Carbon belt diameter: maximum diameter of 1.45 (37mm)
Carbon length: 92m
Shaft size: the inner diameter of the shaft is 0.5 (13 mm) including the slot
Power EDAC switching power supply
Input: 100V ~ 240V, 1.8 A, 50 ~ 60Hz
Output: 24VDC, 2.5 A, 60W Max
Installation/standard CE, UL, CUL, FCC Class A, CCC
Operating temperature of 40 f to 100 f (4 ℃ ~ 38 ℃); 10% ~ 90% no frost
Optional accessories
The rotary knife, the 4M Asian type card (in the complex, simple, Korean and Japanese),
The clock card
