The machine model

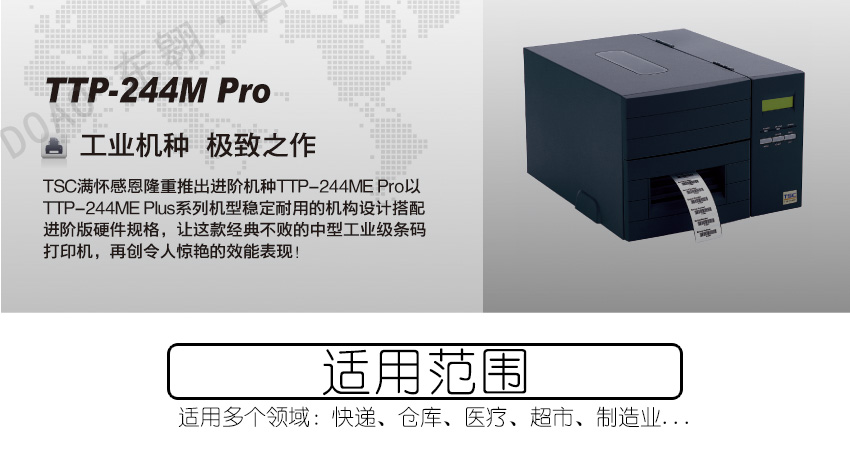

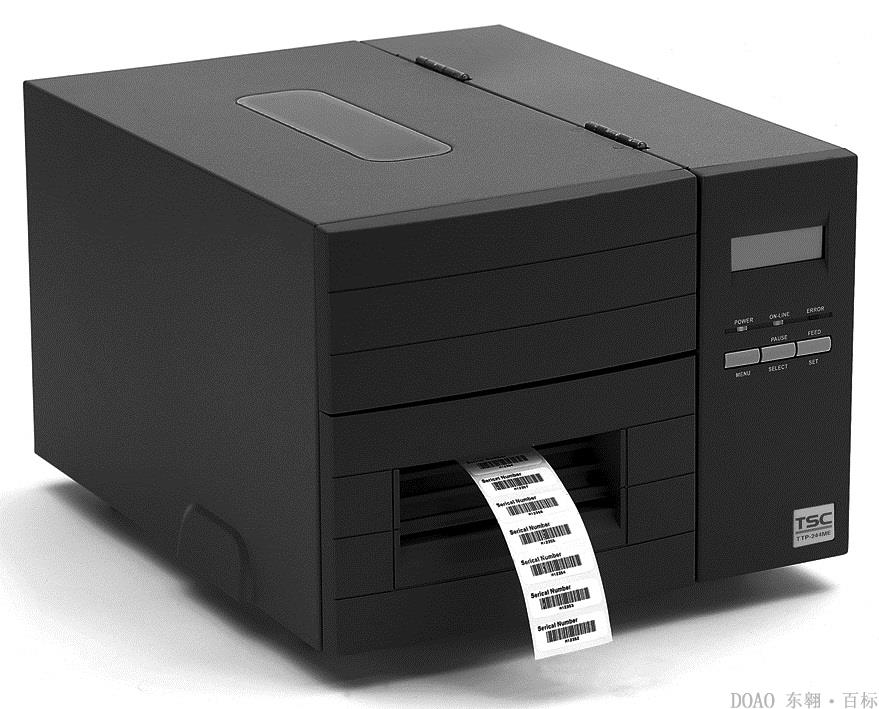

TTP - 244 - m Pro
The resolution of the
203 DPI
Print mode
Heat transfer and heat sensitive type
The printing speed
1.5, 2, 3, 4 ips
Print width
25 ㎜ (1) ~ 104 ㎜ (4.09 ")
Print the length of the
6 ㎜ (0.24 ") to 1016 ㎜ (40)"
chassis
The metal structure contains transparent Windows
The volume size
360mm (L) x 295mm (W) x 220mm (H)
14.17 '(L) x 11.61' (W) x 8.66 '(H)
The operation key
LED lights (power, standby, error) buttons (feed, pause)
The sensor
Remove the middle/right paper space, black label, carbon tape over, print head lift
memory
Flash 4 m, 8 m DRAM
Communication interface
PARALLEL, rs-232, USB, SD
The RS - 232, USB, SD
The power supply
AC Input: 100 ~ 240V / 50 ~ 60Hz DC Output / 24V / 2.5a / 60W built-in switching power
Font types
There are five types of type-type (word number is 0.059 ~ 0.23), which can be downloaded by software
Font amplification
Built-in bitmap fonts
Font rotation
0, 0, 90, 180, 270
Graphic type
Supports PCX, BMP file format
A dimensional barcode
Code39, Code39C Code93, ucc Code 128, Code 128 subsets. A, B, C, Codabar, Interleave 2 of 5, EAN - 8, EAN - 13. EAN - 128, UPC - A, UPC - E, EAN and UPC 2 - dight, 5 - digit add - on, MSI, PLESSEY, POSTNET, ITF14, Code 11, China Posst, GS1 DataBar
Two dimensional barcode
Pdf-417, Maxicode, Datamatrix, QR code, Aztec
Barcode label layout software
NiceLabel
Control instruction set
TSPL TPLE,
The paper type
Tabbed/continuous/folding: thermal paper, coated paper, PVC paper, silver dragon paper (away), HI - FI paper, UL safety paper, transparent paper, tag, washing mark, tetolon paper, paper pearl dragon
The paper width
25.4 ㎜ ~ 114 ㎜ (1.0 "to 4.49")
The thickness of the paper
0.06 ㎜ ~ 0.25 ㎜ (2.36 ~ 9.84 mil)
The paper capacity
Within 178 ㎜ OD (7 "OD), hang: 180 m long
Axis of paper
25.4 ㎜ ~ 76.2 ㎜ (1 ~ 3)"
Black label height
1.5 ㎜ ~ 3 ㎜ (0.06 "to 0.12")
Carbon belt type
General, semi-resist scraping, anti-scraping, washing standard
Carbon belt width
25.4 ㎜ ~ 110 ㎜ (1 "to 4.33")
Carbon belt length
300 m
Axis of carbon belt
25.4 mm (1 ")
Safety certification
CCC
RTC
RTC real-time clock
Environmental conditions
Operating environment 5 to 40 ℃ (40-104 ° F)
Storage environment - 40-60 ℃ (40-140 ° F)
accessories
Windows TAB editing software, driver, and operation manual
Quick installation manual
The factory equipped with
LCD display
The PARALLEL PORT function
Dealer selection
Automatic cutter
PEEL label stripping device
Customer optional
KP - 200 single-machine operating keyboard
The ku-007 program operates the keyboard on a single machine
The hs-200 long-distance bar code scanner
