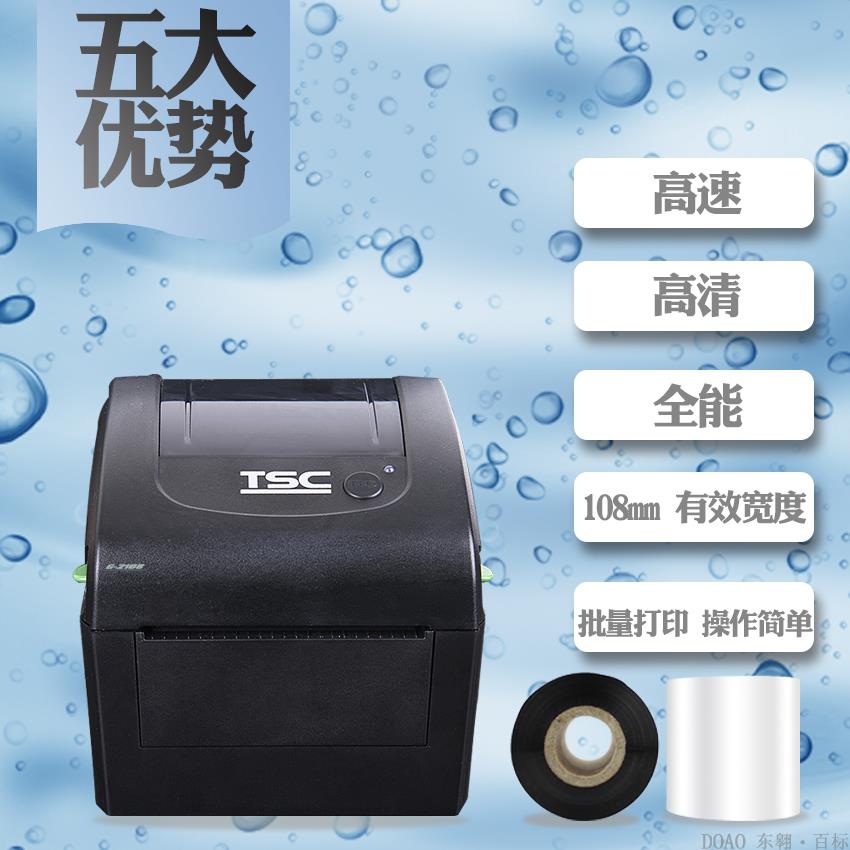

The product name
DA200 / DA300
Print pattern
Thermal type
resolution
8 points/mm (203 DPI), 12 points/mm (300 DPI)
Print speed
127mm (5 ")/second, 102mm (4 ")/second
Maximum print width
108 mm (4.25 "), 105.7 mm (4.16)
Maximum print length
2,286 mm (90 "), 2,286 mm (90 ")
Central processing unit (CPU)
32-bit efficient processors
memory
• 128 MB Flash memory
• 64 MB SDRAM
The sensor
• paper spacing sensor
• black line marker sensor
• raise the sensor in the print head
The shell
Double layer ABS plastics
Operation panel
Power switch, paper key, LED indicator (3 colors: green, orange, red)
size
172mm (wide) x 165 mm (high) x 195 mm (long)
6.77 "(wide) x 6.50" (high) x 7.68 "(long)
Instruction set
Tspl-eztm (compatible with EPL, ZPL, ZPL II)
Communication interface
• USB 2.0
• serial port (rs-232) (optional)
• built-in Ethernet server (optional)
• USB host, which supports single machine operating keyboard and bar code scanner (optional)
• bluetooth (customer selection)
• 802.11b/g/n wireless network transmission (customer selection)
accessories
• the software, the driver, and the manual of the operation manual
• quick installation guide
• USB transmission line
• the power cord
Operating temperature
Operating environment: 5 ~ 40 ° C, humidity (condensation) 25 ~ 85%
Storage temperature
Storage environment: - 40 ~ 60 ° C, humidity (condensation) 10 ~ 90%
Environment specification
Accord with RoHS, WEEE
Weight (including battery)
1.3 kg (2.87 pounds)
Dealer selection
There is no
Waterproof and waterproof specifications
IP54 (for protective bags)
Safety certification
The FCC Class A, CE Class A, C - Tick Class A, CB, CCC, ENERGY STAR ®
The thickness of the paper
0.055 ~ 0.19 mm (2.16 ~ 7.48 mil)
The paper type
Continuous paper, black standard paper, suspended card, folded paper (outer volume)
The paper width
19 ~ 114 mm (0.7 to 4.5)
Maximum roll size
127mm (5 ") outside diameter, 25.4 ~ 38mm (1 "~ 1.5") paper scrolls
The barcode
• one-dimensional bar code
Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN -8, EAN -13, EAN -128, upc-a,
Upc-e, EAN and UPC 2 (5) digits add - on, MSI, PLESSEY, POSTNE T, RSS -, GS1 DataBar, Code 11, China Post
• 2d barcode
Pdf-417, Maxicode, DataMatrix, QR Code, Aztec
Internal font
• eight bitmap fonts
• a Monotype ® CG Triumvirate Bold Condensed vector fonts and True Type Font Type generator
• use software to download Windows fonts
The factory equipped with
• USB host (supports single-machine operating keyboard and bar code scanner)
Real-time clock (RTC)
• peel off the module
• knife cutter (complete cut and half cut)
• printing modules with no bottom paper coils
Customer optional
Bluetooth wireless transmission module (serial port interface)
• 802.11b/g/n wireless network module (serial port interface)
• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS)
