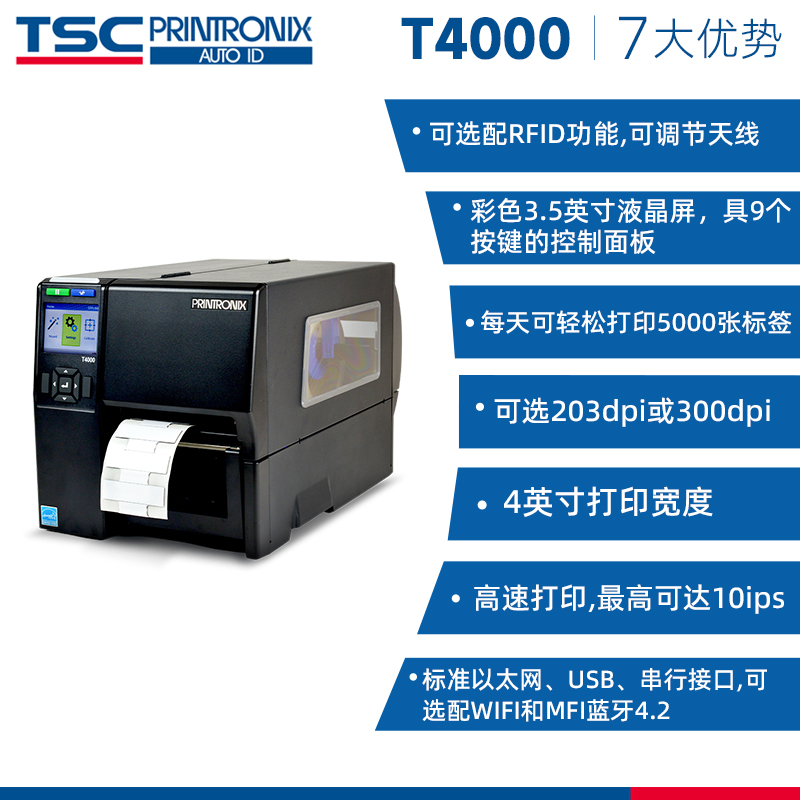

Product advantages
High performance ARM Cortex-A7
128MB RAM/128MB flash memory
4 inch printing width
Can provide 203dpi or 300dpi

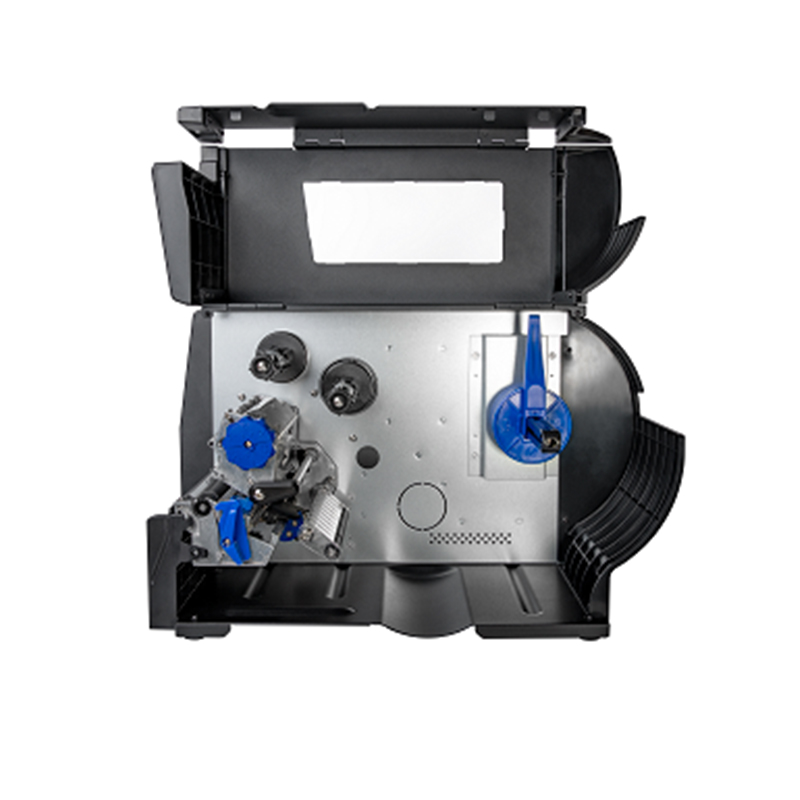

• Steel frame shell and double folding consumable door
• Supports all major thermal conversion/thermal printer languages
• Heat transfer printing and thermal printing
Colorful 3.5-inch LCD screen with a control panel with 9 buttons
Standard Ethernet, USB, serial interface
Optional Wi Fi 802.11a/b/g/n/ac and Bluetooth 4.2
• Enterprise level Ethernet and Wi Fi security
Optional RFID encoder/antenna system
4-32GB SD memory card function
• Supports advanced Asian and Andale fonts

Model T4000
Resolution of 203dpi or 300dpi
Printing modes thermal and thermal rotary
Maximum printing speed 10 ips @ 203dpi, 7 ips @ 300dpi
Maximum printing width 4.1 inches (104 millimeters)
Paper type: Roll or fan folding labels, markings, paper, film, tickets
Paper conveying standard configuration: continuous and tear open
Optional: Stripping/rewinding (paper label, 6 ips, rewinding 8-inch reel liner)
Knife cutter (thickness according to paper specifications, service life 500000 cuts)
(Metal surface RFID tags/labels not supported)
Paper width minimum 1 inch (25.4 mm)/maximum 4.72 inches (120 mm)
Paper thickness 0.002 inches (0.06 millimeters) to 0.011 inches (0.279 millimeters)/RFID maximum thickness 0.05 inches (1.2 millimeters)
Minimum paper length: continuous, tear paper 0.25 inches (6.35 millimeters)
Min: Peel, cutting blade 1.0 inches (25.4 millimeters)
Maximum: 50 inches (1270 millimeters)
Paper roll axis size from 1.5 inches (38.1 mm) to 3.0 inches (76.2 mm)
Maximum paper roll diameter 8.0 inches (209 millimeters)
Carbon belt type wax, wax/resin, resin
Carbon strip width minimum 1.6 inches (40 millimeters)/maximum 4.33 inches (110 millimeters)
Carbon strip length 1476.4 feet (450 meters)
Carbon tape reel diameter 1.0 inches (25.4 millimeters)
Interface I/O standard configuration: RS232 serial interface, USB interface and Ethernet 10/100Base T/optional: Wi Fi 802.11a/b/g/n/ac, Bluetooth 4.2
WiFi secure encryption WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK), Enterprise (AES CCMP)
WiFi security certification EAP-TLS, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1EAP-MDS, LEAP
Remote management software PrintNet Enterprise Suite, SOTI Connect: IoT device management
Memory 128 MB Flash/128 MB DDR
Input voltage automatically adapts to 100 to 240 VAC (48 to 62 Hz)
Font technology: Intellifont, TrueType, Unicode
Standard fonts: OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate/Bold/Compressed
Advanced Asian fonts (optional SD card): Simplified Chinese, Japanese, Korean, Thai
Andale Asian font (optional SD card): Simplified Chinese, Traditional Chinese, Korean, Japanese
PDF/PostScript level 3: 35 fonts
Graphics formats PCX, TIFF, BMP, PNG
Barcode one-dimensional barcode: BC-412, Code 11, Code 39, Code 35, Code 93, Codeabar, Code128 Subsets A/B/C, Industrial 2 of 5, Interleave 2 of 5
German I-2/5, EAN-8, EAN-13, UCC/EAN-128, UPC-A, UPC-E, UPCSHIP, UPS 11, MSI, Matrix 2 of 5, PLESSEY, POSTNET
4-state PostBar, Australian 4-state, FIM, ITF14, TELEPEN, PLANET, USPS Intelligent Mail, LOGMARS
2D barcodes: PDF-417, MicroPDF-417, Maxicode, DataMatrix, QR Codes, Aztec, GS1 Databar (RSS-14)
RFID RAIN UHF Passive (GS1 EPC Gen2 v2/ISO 18000-63)
Fixed position antenna
Standard/Signage attached to metal/Additional Signage Structure
Minimum label/label spacing of 0.625 inches (15.9mm)
The thickness of the label attached to the metal shall not exceed 0.05 inches (1.2mm)
Printer languages: PGL, ZGL, STGL, MGL
Counter: tracks well/repeatedly printed labels/labels
Working environment Working temperature: 32 ° F to 104 ° F (0 ° C to 40 ° C) (limited to selected paper)/Working humidity: 25 to 85% non condensing
Storage temperature: -40 ° F to 140 ° F (-40 ° C to 60 ° C)/Storage humidity: 10 to 90% non condensing
Safety certified emissions: FCC, CE, IC, CCC, KC
Security: cTUVus, CE, IC, EAC, SMARK, NOM, CCC, KC, BIS, BSMI
Environmental protection: RoHS, WEEE, Energy Star 3.0
RFID: FCC, CE, ANATEL, ICT, KC, MIC, NCC SRRC, WPC
WiFi/BT: USA, Canada, EU, China
Volume dimensions (width x height x depth) 10.40 inches (264 mm) x 10.9 inches (276 mm) x 17.9 inches (455 mm)
Weight 22 pounds (10 kilograms)
Options and accessories Wi Fi 802.11a/b/g/n/ac
Bluetooth 4.2
Knife cutter
Stripping/rewinding
Andale Asian Font Card
Advanced Asian Font Card
QCMC (Quick Memory Card Replacement)
RFID
）
Encoder/antenna system
