The zebra Symbol MC1000 data collection machine

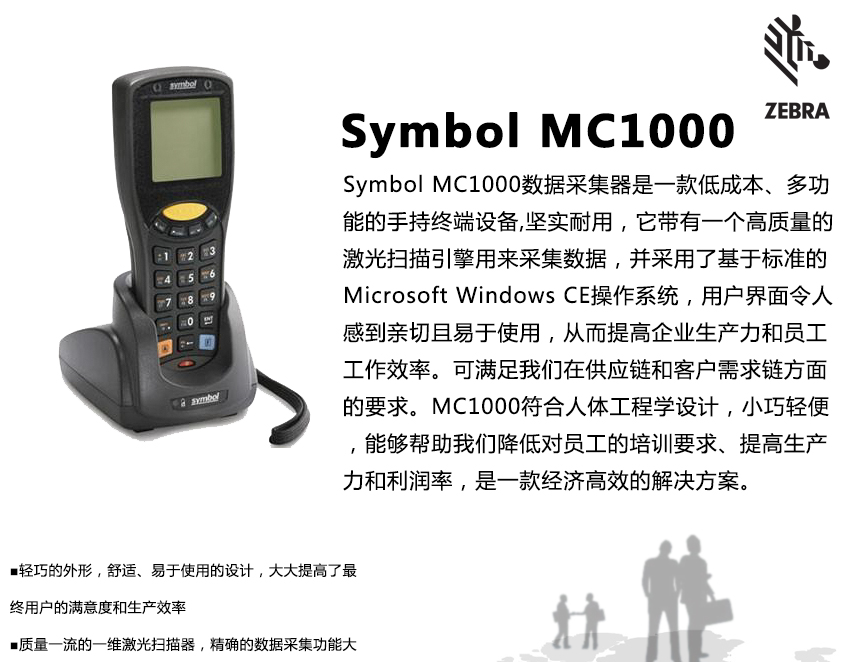

The Symbol MC1000 data collector

Brand: zebra zebra
Model: the MC1000
Main features of the product:
The lightweight shape, comfortable and easy to use design, greatly improved the end user's satisfaction and production efficiency
A one-dimensional laser scanner with first-class quality, accurate data collection function greatly improves productivity and efficiency
The durable design is suitable for light industrial application, reducing downtime and improving product life cycle
This is a high-speed Intel XScale processor that provides quick processing power for enterprise applications
The MC1000 adopts Wondows CE4.2 operating system and fully open programming
Big screen LCD display
The MC1000 has a high performance laser scanning head to make the bar code scanning easier

DetailParameterDownloadVideo data

Physical parameters

Size: height 16.3 cm x width 6.45cm x thickness 3.8 cm

Weight (including standard battery) : 205 g

Display screen: tft-lcd, monochrome 240x240, no touch screen

Backlight: electroluminescent (EL) backlight

Battery: 3 AAA batteries, or 1 rechargeable lithium battery, 3.7 V, 1,800 mAh

Extended slot: user can access SD slot (with safety cover)

Tip: scan and charge LED

Keyboard: 21 key, number/letter switch

Audio: buzzer

The performance parameters

CPU: Intel XScale 312MHz processor

Operating system: Microsoft Windows CE 4.2 Core

Memory: 32MB RAM / 32MB ROM

Interface/communication: rs-232, USB 1.1 client

Using the environment

Working humidity: - 10 ~ 50 ° C

Storage temperature: - 40 ~ 70 ° C

Humidity: 0 to 85% relative humidity (no condensation)

Drop specification: 1.2m height fell to the impact of cement floor, 500 times 0.5m scroll

Sealed specification: IP54

Electrostatic discharge: conforms to + / -10kv air discharge, + / - kV direct discharge requirements

One-dimensional laser scanner

Supported symbols: Interleaved 2 of 5 (ITF), RSS - 14 / Limited/Expanded, Codabar (NW - 7), ITF, MSIPlessey, IATA 2 of 5, Code 39 (standard and all ASCII), Code 93, Code 128, UPCA, UPCE, EAN - 13 (WPC), EAN - 8, UPC/EAN complement, Coupon Code

Scanning switch: roof

External equipment and accessories

Communication base: single slot USB/rs-232 rechargeable communication seat for standby battery charging and four-slot USB charging communication base

Communication and charging cable: USB cable charging cable, rs-232 communication charging cable, printer cable

Specific to vertical: modem (connect to single slot communication socket)

Application development

Embedded Visual: c + + 4.0, Visual Studio.net 2003, SDK can be obtained through the Symbol Developer Zone Web site, MCL Rapid ApplicationDevelopment kit

Comply with the regulations

Electrical safety: compliance with UL60950, CSA C22.2 No. 60950, EN 60950 specifications

Electromagnetic interference/rf interference: CISPR 22 Class B, CISPR 24, FCC Part15B, EN 55022, EN 55024

Laser safety: 21. CFR1040.10 Class II, EN 60825, IEC60825 Class 2
