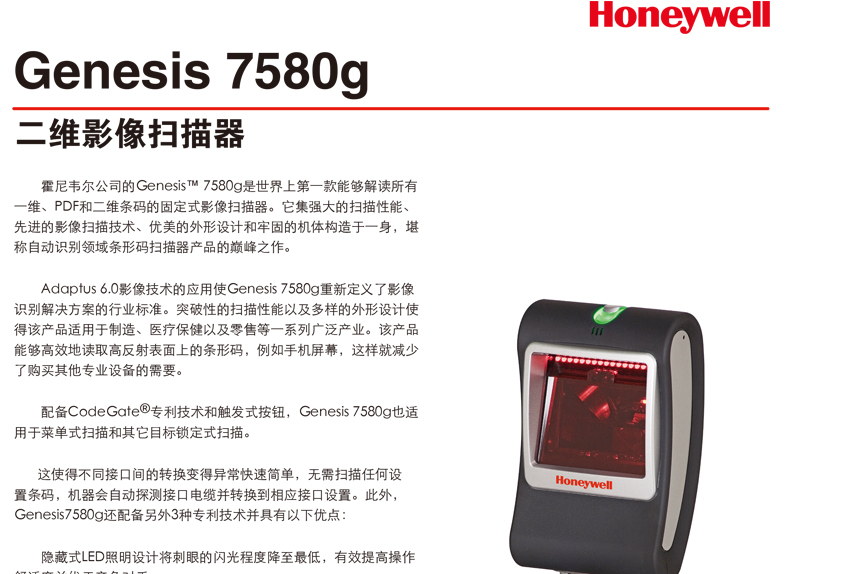

Genesis 7580g fixed 2d scanner
Brand: Honeywell
Model: Genesis 7580g
Main features of the product:
1. Scan the coupons and electronic bills directly on the phone's screen and perform excellent performance
2. The second generation of plug-in development platform, supports multiple applications to upload and connect to the scanner, without the host program modification, but also provides more powerful decoding and data formatting functions
3. Improve documentation management by collecting and storing electronic images, including coupons, personal checks, signatures and damaged packages
Support for maintaining the existing scan requirements while maintaining the option to upgrade in the future, simply by purchasing the appropriate authorization license
5. Provide convenient and fast solutions for IT administrators to enable them to manage all scanners in the same site remotely
DetailParameterDownloadVideo data
Genesis 7580g technical parameters
Physical parameter
Dimensions (L * w * h): 80 mm, x83 mm, X150 mm
Weight: 340 grams
Electrical Parameters
Input voltage: 5.5VDC + 0.25VDC
Operating power: 2.0W (400mA@5VDC)
Standby power: 0.5W (100mA@5VDC)
Host system interface: USB interface, keyboard port, RS232, IBM46xx (RS485)
Auxiliary interface: EAS electronic anti-theft coil (EAS model) with interlocking function
Environment parameter
Operating temperature: 0 degrees C to 40 degrees C (32 degrees F~104 degrees F)
Storage temperature: -40 degrees C to 60 degrees C (-40 degrees F~140 degrees F)
Temperature: 0% to 95% relative humidity, without condensation
Resistance to fall: can withstand repeated drops of 1.5m (to the concrete floor)
Dustproof: sealed to resist air intrusion
Illumination rating: 0 to 100000lux (9290 feet of candle light)
Scanning performance
Scan mode: image scan (838 x, 640 pixel array)
Jitter resistance: 0.33mm (13mil) bar code with a speed of 200cm/ sec can be read within the optimum focal length range
Scanning angle: horizontal 42.6 degrees; vertical: 28 degrees
Recognizable reflected contrast: recent 20% reflection difference
Elevation and declination: 70 degrees, 75 degrees
Decoding capability: automatic identification of all standard 1D, PDF, 2D, Postal, and, OCR code, raw data - based on different configurations, the ability to understand differences"
Warranty: 2 years, factory warranty
