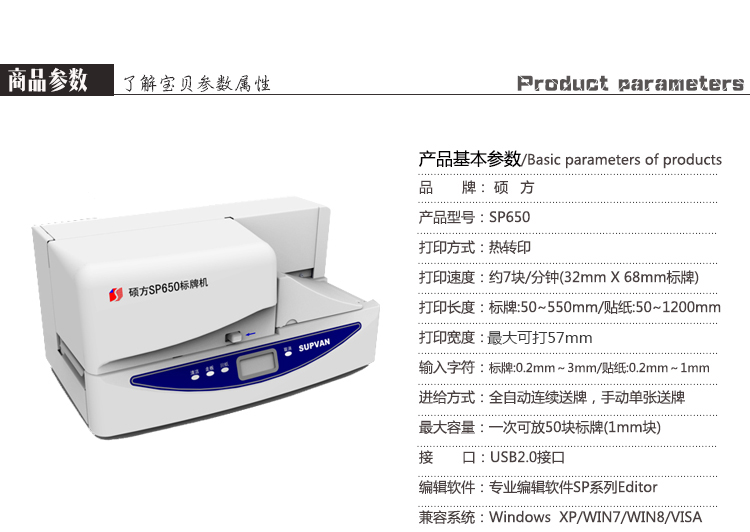

Model parameters SP650 SP600
Resolution 300dpi 300dpi
Display mode LCD white backlight LCD white backlight
Operation interface Chinese
Automatic continuous delivery of CARDS or single-card hand-delivered CARDS
Automatic return of paper
Test printing has

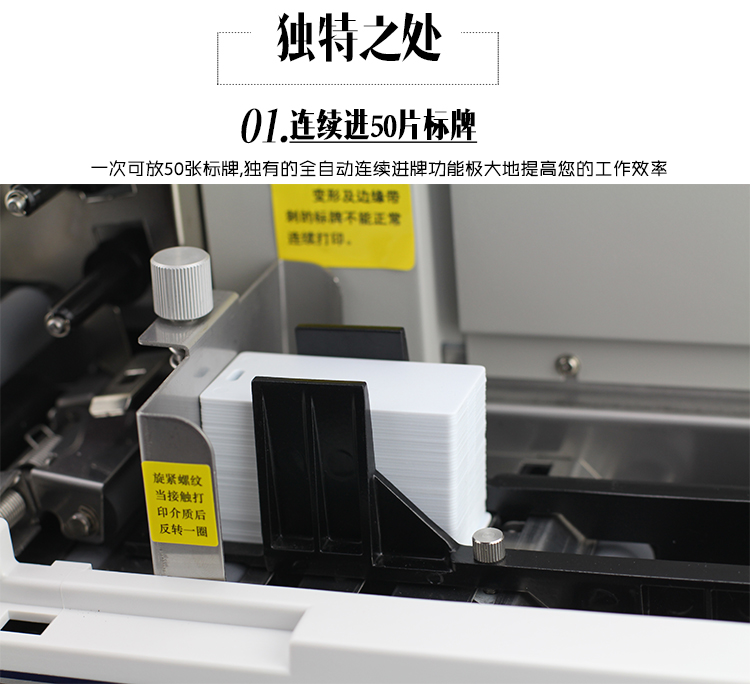

The thickness of the plate and the maximum capacity of the plate box shall be 50mm, and 50 pieces (1mm/block) shall be placed at one time, and the entry box can be disassembled, and the thickness of the plate and the plate shall be equal to 50mm.
Place 50 signs at a time (1mm/block)
The inlet box can be disassembled
Open/cover print open/cover print/cover print
Maximum effective printing width 57mm 57mm
Maximum effective print length: 550mm
Sticker: 1200mm sign: 546mm
Stickers: 1196 mm

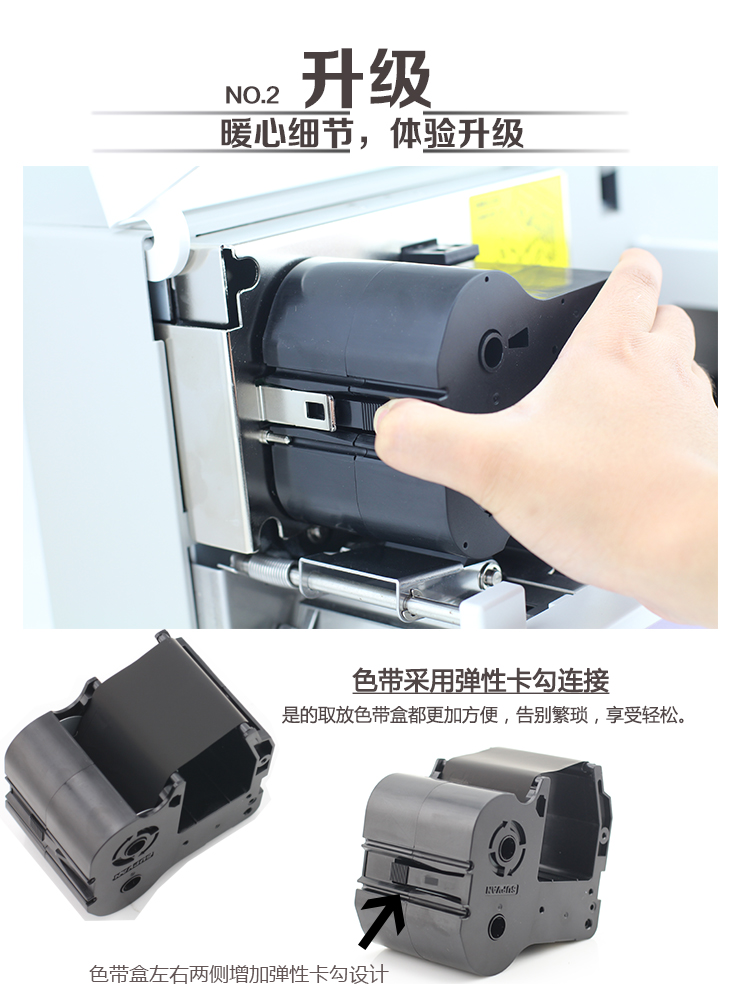

Colour band monochrome (black, red, green, blue, gold, silver, white) monochrome (black, white, red, green, green, blue, gold, and silver can be chosen), can be used in m-300/c-450p

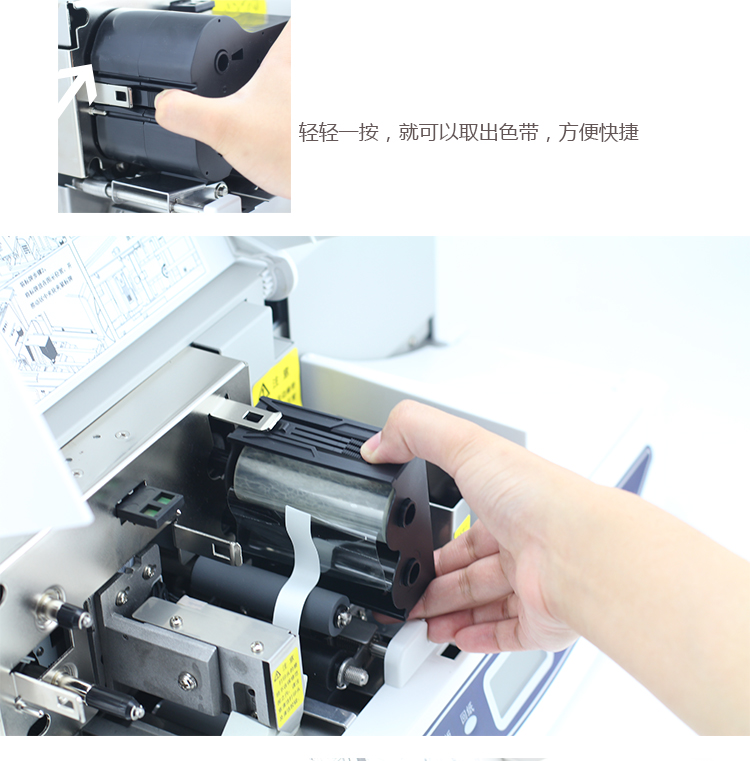

Ribbon size 60mm * 130m 60mm * 130m

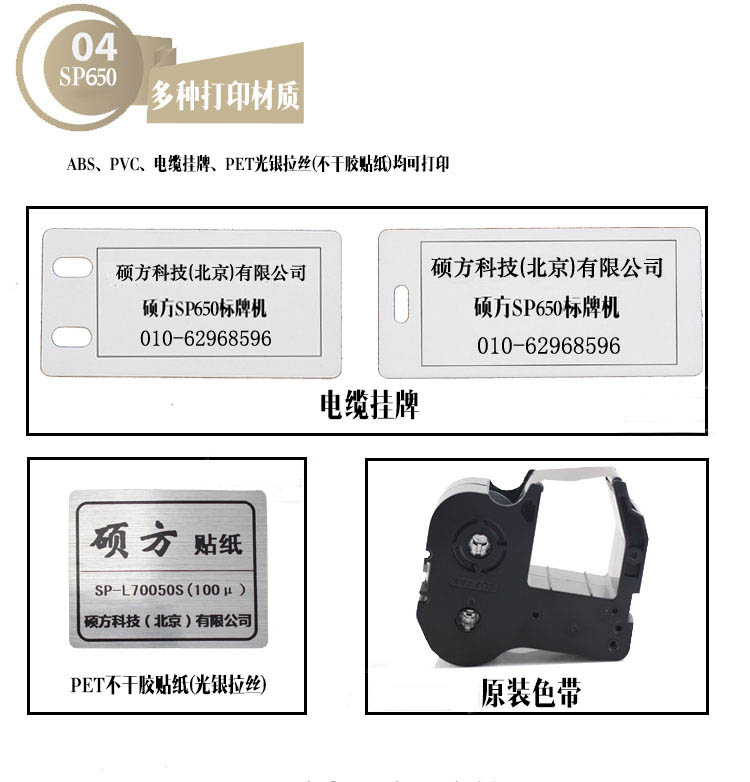

Material type sign: hard board (PVC, ABS)
Sticker: soft label (PVC, PET) sign: hard plate (PVC, ABS)
Sticker: soft label (PVC, PET)
Material thickness plate: 0.2mm ~ 3mm
Sticker: 0.2mm ~ 1mm sign: 0.2mm ~ 3mm
Sticker: 0.2 mm ~ 1mm
Material width plate: 20mm ~ 80mm
Sticker: 20mm ~ 80mm sign: 20mm ~ 80mm
Sticker: 20mm ~ 80mm
Material length plate: 50mm ~ 550mm
Sticker: 50mm ~ 1200mm
The maximum outer diameter of the sticker volume is no more than 170mm sign: 50mm ~ 550mm
Sticker: 50mm ~ 1200mm
The maximum outer diameter of the sticker volume is no more than 170mm
Interface of usb 2.0,
On-line printing speed USB2.0 interface,
On-line printing is fast

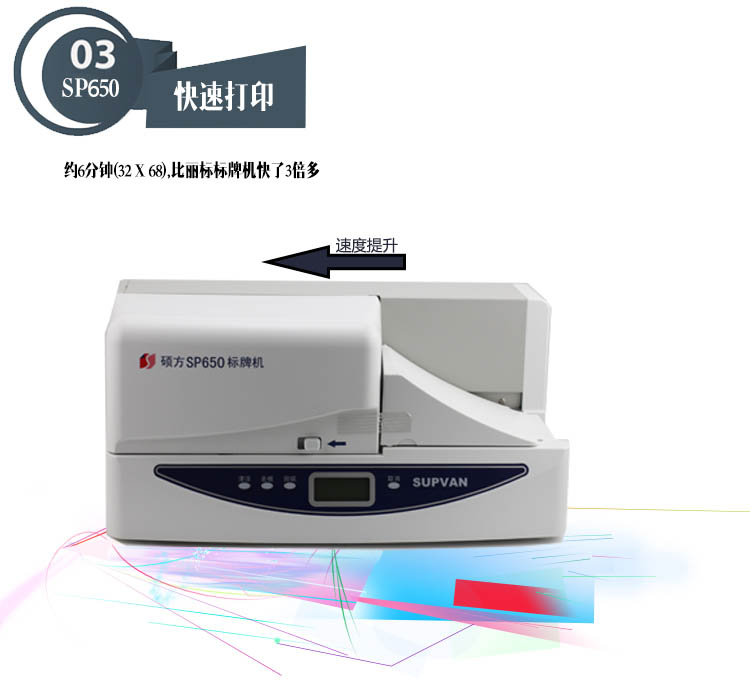

Printing speed (32 * 68mm signs for example) is about 7 pieces/minute, printing 50 plates about 400 seconds and about 6 pieces/min
Print 50 boards for about 500 seconds

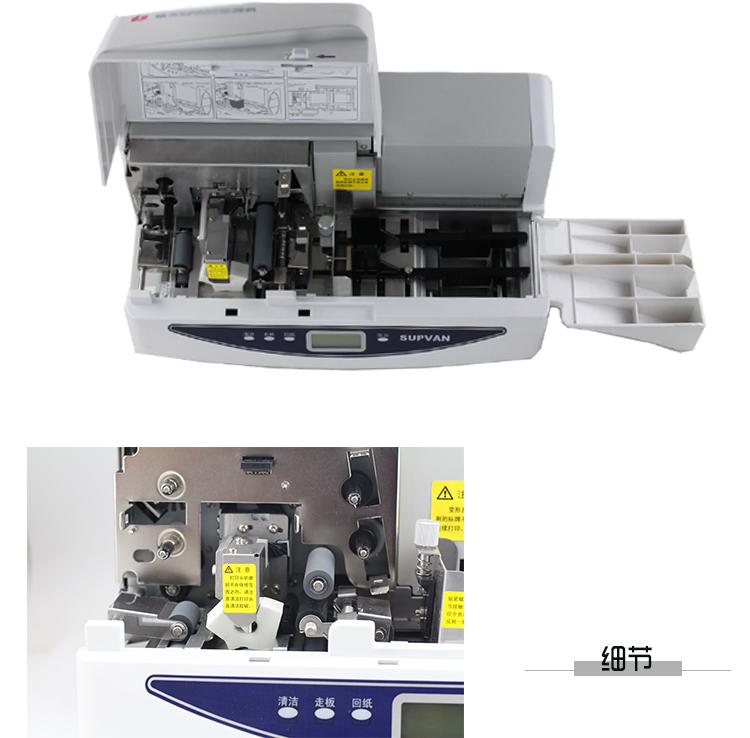

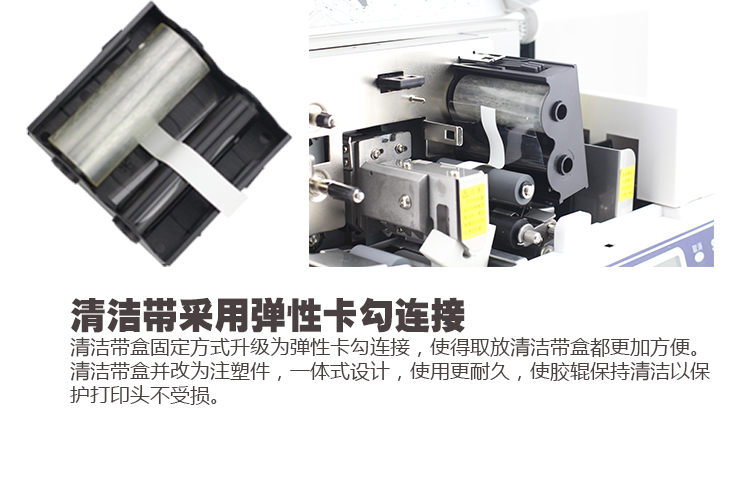

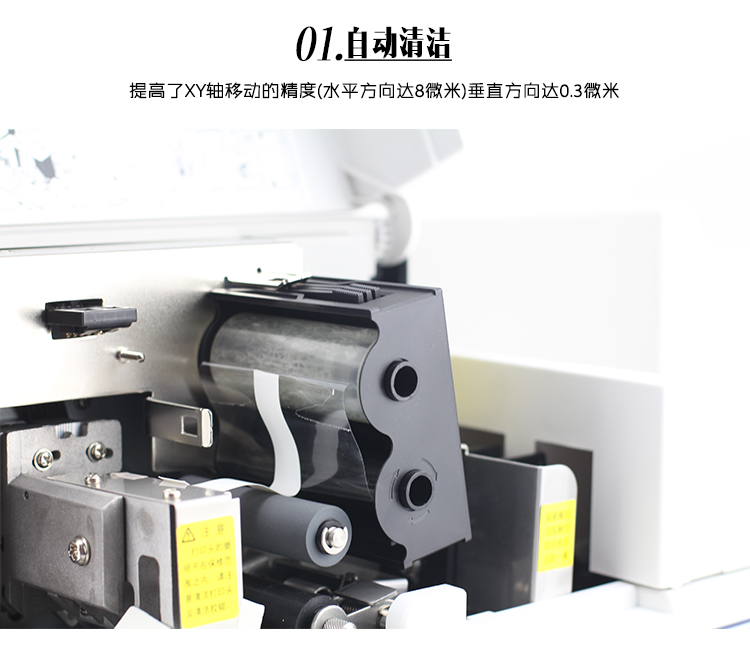

Clean and clean, remove cleaning roller for manual cleaning, clean belt
The cleaning roller can be disassembled
Manual/automatic cleaning
Edit software professional edit software SP series Editor professional Editor software SP Editor
Compatible system Windows XP/WIN7 / WIN8 / VISA Windows XP / 2000/7/8
Heavy volume 11 kg 11 kg
The operating environment temperature 15 ℃ ~ 35 ℃, humidity 15% ~ 80% RH temperature 15 ℃ ~ 35 ℃, humidity 15% ~ 80% RH

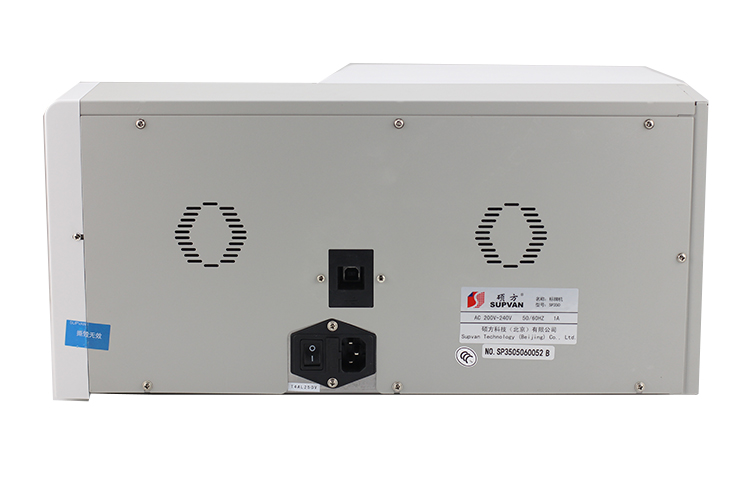

Electrical pressure AC200 ~ 240V 50 ~ 60HZ (market)
