hardware
Dimension mark (W * D x H) 350mm x 188mm x 173mm (including keyboard)
Machine type label printer & tube machine
Weight 4.6 kg (including keyboard, battery and ribbon)
The interface of USB 2.0
The keyboard is (QWERTY)
Shear automatic shear/continuous half - cut
The power AD9100ESA

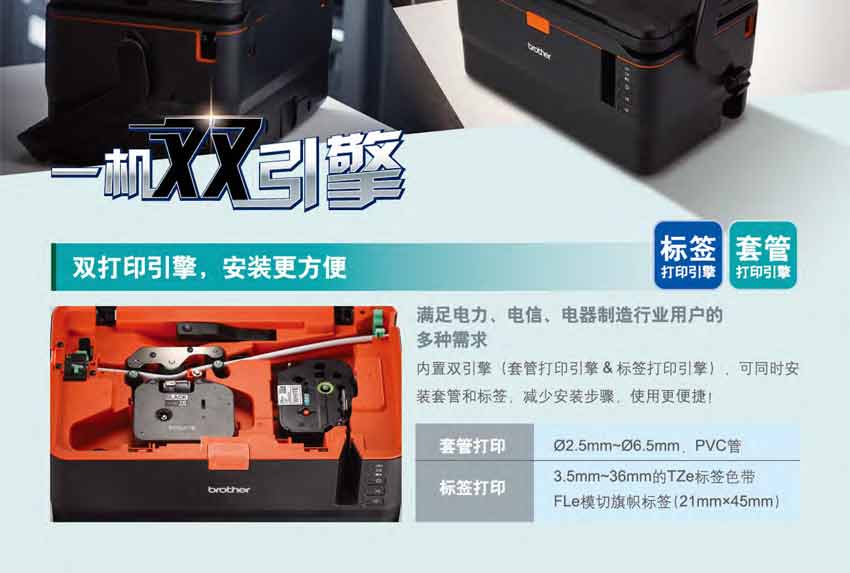

Print height label: highest 32mm (with 36mm ribbon)
Sleeve: the highest 6 mm (6.5 mm casing when using Φ)
Ribbon width (mm) the ribbon (3.5 ~ 36mm)
FLe label (21mm x 45mm)
TR carbon belt (12mm wide)
Printing mode heat transfer

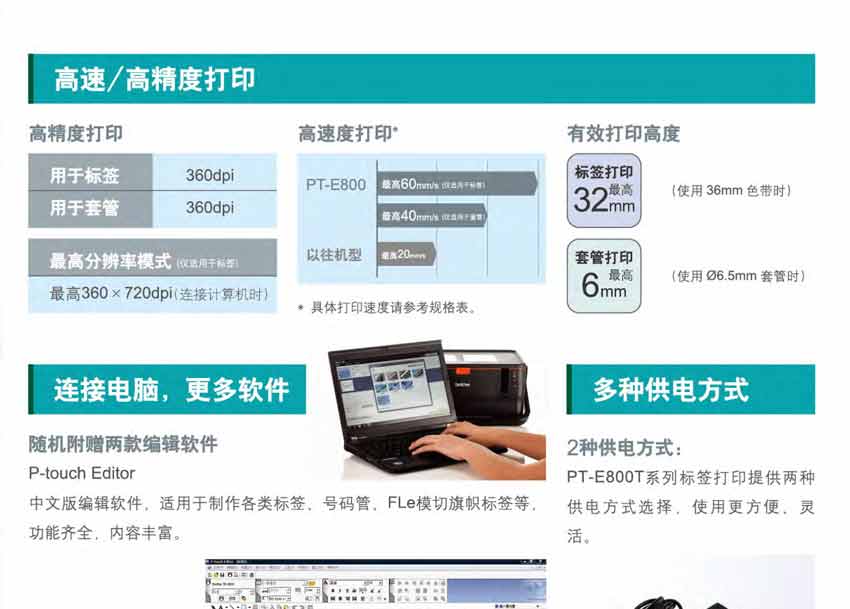

Printing accuracy 360dpi (for labels)
360dpi (for casing)
Highest resolution mode: highest 720dpi * 360dpi (when connecting the computer)
Printing speed label: highest 60mm/second; 20mm/SEC - 60mm/second (depending on the width of the ribbon)
Casing: up to 40mm/SEC
Random attachment TZe tag ribbon (36mm, 1 box)
Tr-100bk carbon belt (100m)
Power adapter (AD9100ESA)
USB cable

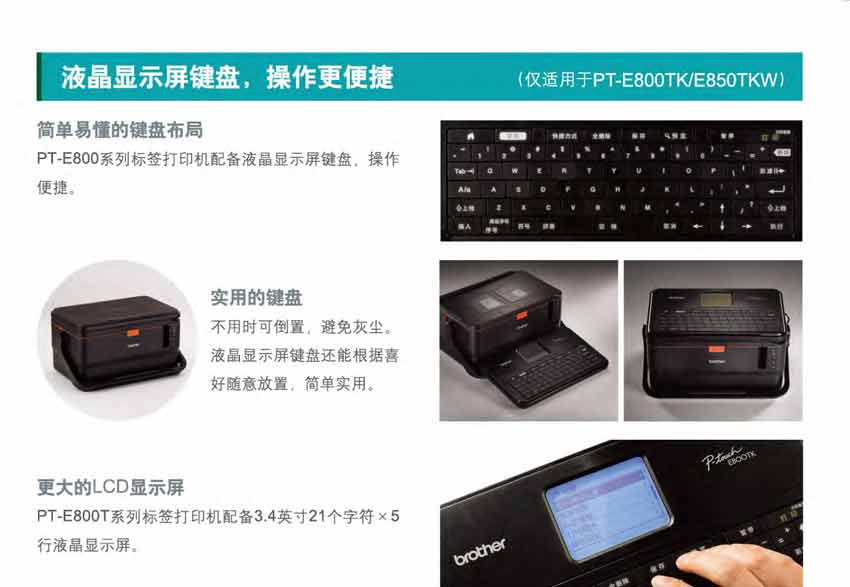

LCD keyboard
Cd-rom (with the electronic version of the instruction manual)
Quick setting guide

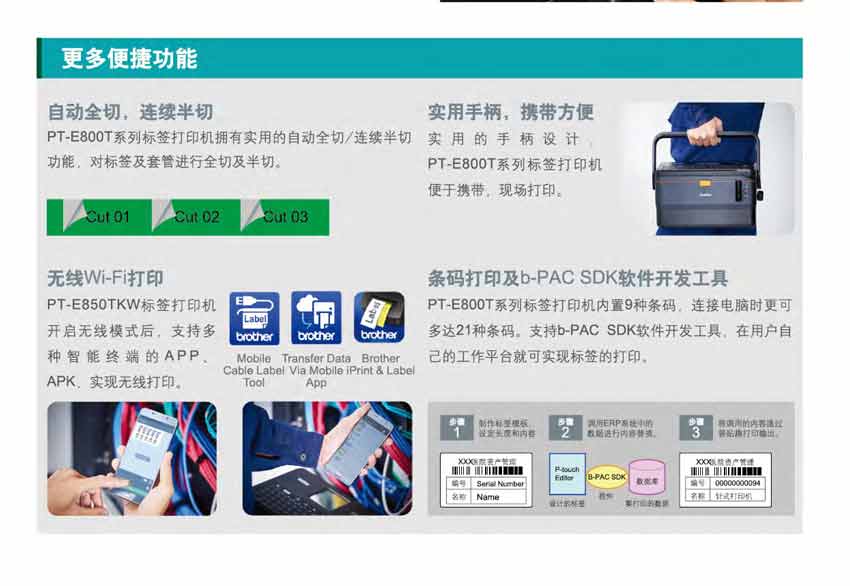

features
Text modification label: 6 types (not connected to the computer)
Casing: 4 types (not connected to the computer)
Font size label: 23 kinds
Casing: 6 types
Image printing has (only tags)
Serial number printing (1 ~ 99)
Print line number tags: up to 17 lines (with a 36mm wide label color band)
Casing: up to 2 lines
Border 7 (label only)
Automatic format
7 MB memory
Multiple print labels: (1 ~ 99)
Casing: single-page (1-99), one print job can print up to 9,999 copies
Print preview
The bar code has 9 barcode protocols
Time function
Date feature
On both ends of the blank
System environment
Operating system, Windows Vista ®
Windows ® 7/8/8. 1/10 /
Windows Server 2008 ®
R2 2008 R2/2012/2012
Memory Windows ® :
Windows Vista ® : 512 MB or more
Windows ® 7:1 GB or above (32-bit) or 2 GB or more (64)
Windows ® 8 / Windows ® 8.1 / Windows ® 10:1 GB or above (32-bit) or 2 GB or more (64)
Hard disk 460 MB or above
Monitor SVGA, high color or more advanced graphics card;
The interface of USB 2.0
other

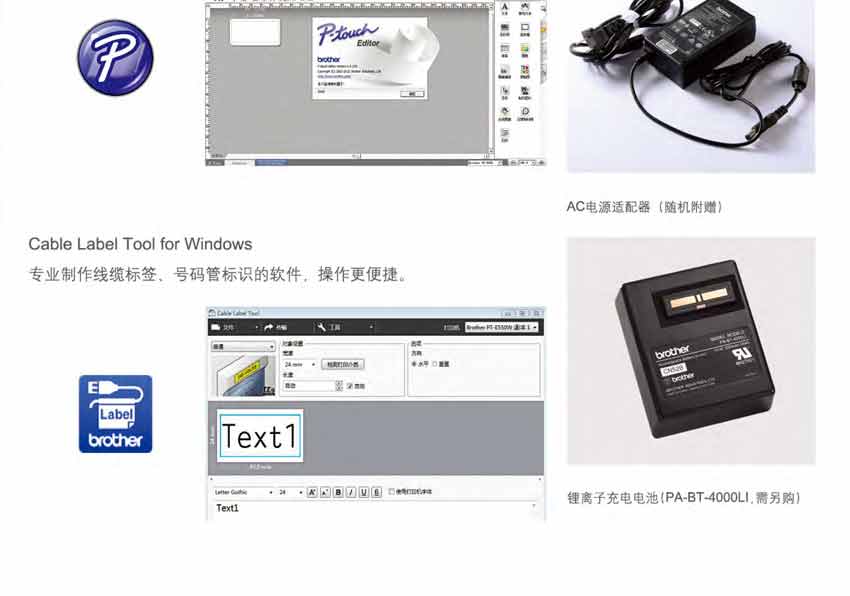

PC software
Edit software p-touch Editor
Cable Label Tool for Windows
Operating system, Windows Vista ® / Windows ® 7 /
Windows ® 8/8.1 / Windows ®
Windows ® 10
Driver pt-e800tk
