hardware
Dimensioning (W * D x H) 149 x 52 * 122.5

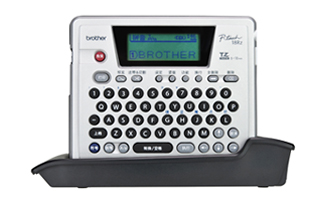

Machine type portable professional label printer
Weight 490g (excluding battery and ribbon)
Interface USB interface (USB specification 1.1 or 2.0 protocol)
Keyboard one-piece rubber keyboard (58 key), QWERTY arrangement
Shear automatic shear
Power supply AC adapter (AD - 18), Ni - MH rechargeable battery
Print height 15.8 mm (18mm wide label ribbon)
Color band width (mm) 6, 9, 12, 18
Printing mode heat transfer
Printing accuracy 180dpi
Print speed 10mm/s

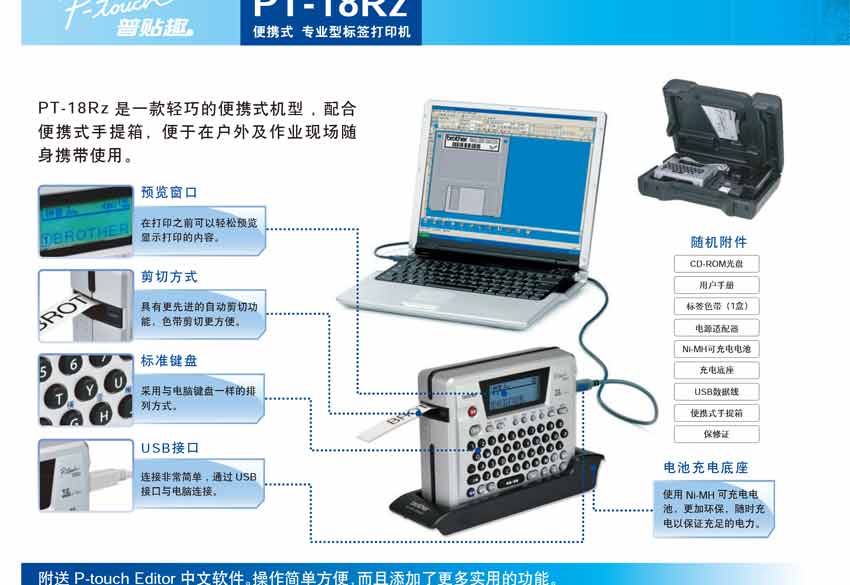

Random attachment cd-rom
The TZe tag ribbon (12mm, 1 box)
Power adapter
Ni - MH rechargeable battery
The charging base
USB cable
The user manual
The warranty card
Portable suitcase

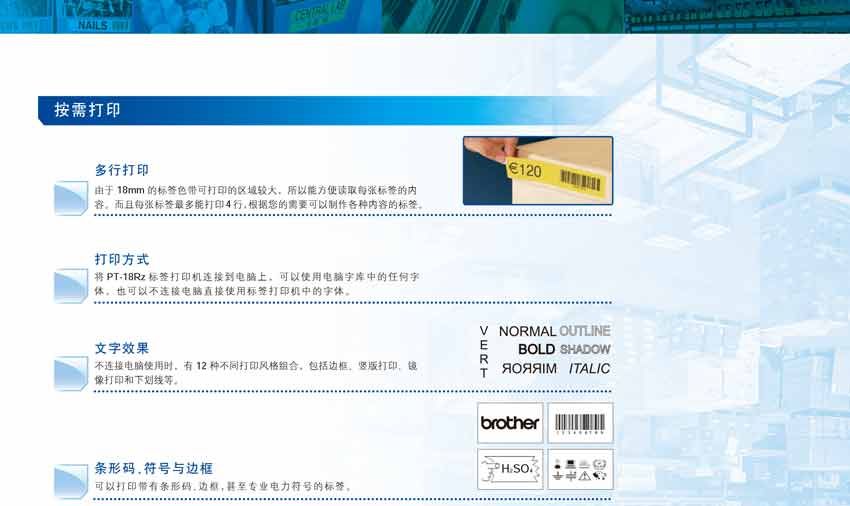

features
Text embellished 5 (built-in)
Font size 3 (built-in)
Image printing has
Serial number printing (1 ~ 99 pieces)
Print line number up to 4 lines (18mm wide label color band)
22 species of border
Automatic format
Memory 10 files, up to 396 characters
Multiple prints (1 ~ 99 pieces)
Print preview (real display)
Barcode nine (built-in)
No time function
date-free
On both ends of the blank
System environment
Operating system, Microsoft ® ® Windows XP/Windows Vista ® / Windows ® 7
Memory Windows ® XP: 128 MB or more;
Windows Vista ® : 512 MB or more;
Windows ® 7:1 gb (32-bit) or 2 gb (64) or more
Hard disk 70MB or above
Display support for SVGA, High Color or graphics card of above specification
Interface USB interface (USB specification 1.1 or 2.0 protocol)
Other cd-rom drives for installation

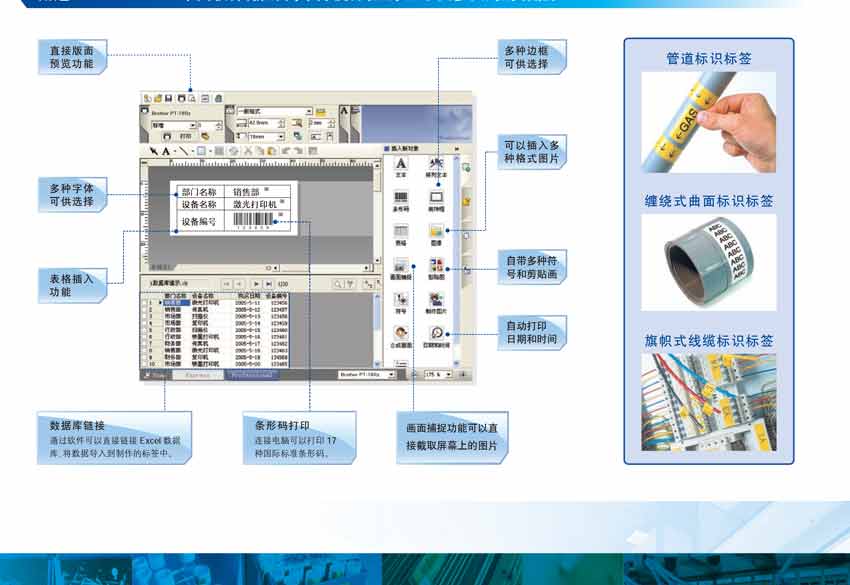

PC software
Edit software p-touch Editor in Chinese
Operating system, Microsoft ® ® Windows XP/Windows Vista ® / Windows ® 7
Driver pt-18rz
