hardware
Print mode heat sensitive printing
Sensor type reflection type/through type
Dimensions (wide X high X long) (mm) 116x82x189
The weight has a battery of 680g
The printing speed is up to 127mm/s
Print the maximum width of the paper 80mm
Print width of maximum 72mm
Print accuracy 203dpi
The outer diameter of paper volume is 66mm
Anti - crash resistance to fall 1.8 m
Anti-dust waterproof certification IP54 certification
Monitor 3.3 inch color LCD display
Built-in clock function support

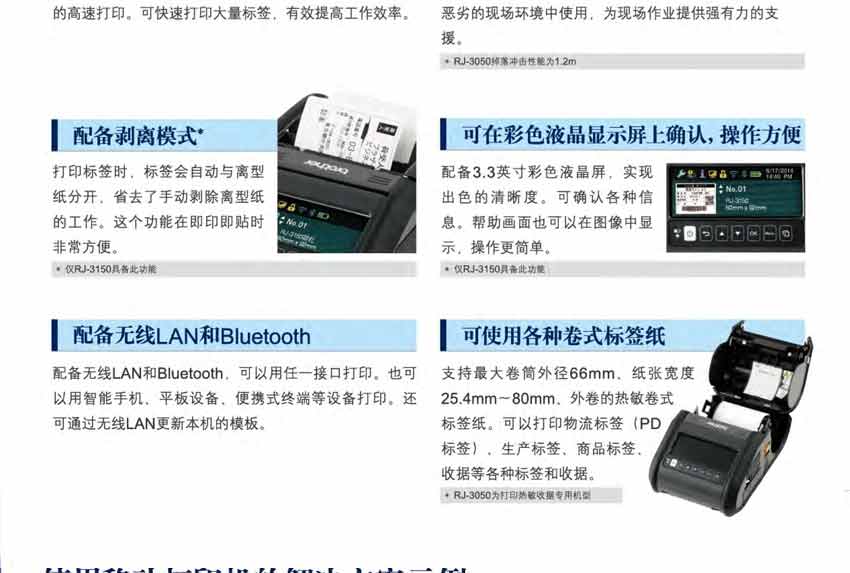

Stripping mode support
14 MB memory
Interface USB: USB2.0 (high speed) (mini-b, Peripheral)
Bluetooth: bluetooth 2.0; EDR (Class 1)
Wireless LAN wi-fi: wireless LAN ieee802.11b/g/n (Infrastructure/Adhoc mode/WirelessDirect mode)
software
Print instruction/mode Raster, ESC/P, p-touch Template 2.0 (p-touch Template + ZPLII)
SDK b-pac SDK for Windows operating system
Mobile operating system (SDK support) Android, iOS
Print driver Microsoft ® ® of the Windows Vista/Windows 7 / Windows ® ® / Windows Server 8 ® / r2/2012/2008/2008 Windows XP ®
The work environment
Working temperature - 10 ℃ to 50 ℃
Work 10 to 90% moisture (no air condensation, maximum wet-bulb temperature 27 ℃)
Storage temperature 20 ℃ ~ 60 ℃
Storage 10 to 90% moisture (no air condensation, maximum wet-bulb temperature 45 ℃)
The power supply
Power adapter charging special
Power/print battery rechargeable battery
Print 5300 sheets (76x33mm)
