Thermal barcode mode
Thermal paper mode
Way of print
Way of print
thermal
Line of thermal
The resolution of the
203 dpi
The 384 - point/line
Print width
2 inches (printing maximum width of 56mm)
Print maximum width: 48mm
The printing speed
Maximum 127mm/s, normal 101mm/s
90 mm/s
memory
DRAM: 2 m FLASH: 2 m
DRAM: 2 m FLASH: 2 m
Print head temperature detection
thermistor
thermistor
Print head location detection
Micro switch
Micro switch
Paper detection
Photoelectric sensor
Photoelectric sensor
Communication interface
Serial port + USB + bluetooth (optional)
Serial port + USB + bluetooth (optional)
The barcode
CODE128 / EAN128 / ITF/CODE39 / CODE93 / EAN13 / EAN13 + 2 / + 5 / EAN8 EAN8 EAN13 + 2 / EAN8 + 5 / CODEBAR POSTNET/UPC - A/UPCA + 2 / + 5 / UPC UPCA - E/UPCE + 5 / + 2 / UPC - E/MSIC CPOST/MSI PLESSEY/ITF14 / EAN14
UPC - A/UPC - E/JAN13 (EAN13)/JAN8 (EAN8)/CODE39 / CODEBAR/ITF/CODE93 / CODE128
Character set
Common use of single-byte fonts, FONT 0 to FONT 8
ASCII character set
FontA: 12 * 24 points
FontB: 9 * 17
National standard 1, secondary Chinese character library
Simplified/traditional: 24 * 24
Character amplification/rotation
Horizontal/vertical can be magnified 1-10 times, rotary printing (0, 90, 180, 270, 360)
Horizontal/vertical can be magnified 1-8 times, rotary printing (0, 90, 180, 270, 360)
graphics
Monochrome PCX, BMP and other image files can be downloaded to FLASH, DRAM
Support different density bitmap and download bitmap printing
The power supply
The input
DC12V / 4 a
DC12V / 4 a
Cashbox output
DC12V / 1 a
DC12V / 1 a
Environmental requirements
The work environment
5 ~ 45 ℃, 90% RH or less (condensation)
5 ~ 45 ℃, 90% RH or less (condensation)
Storage environment
- 10 ~ 50 ℃, 90% RH or less (condensation)
- 10 ~ 50 ℃, 90% RH or less (condensation)
The physical environment
Overall dimensions

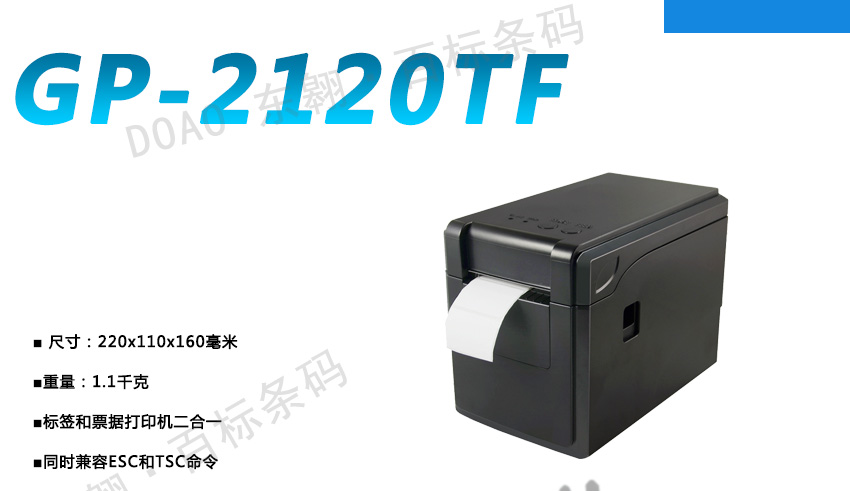

220 x 110 x 160 mm (wide x depth x height)
220 x 110 x 160 mm (wide x depth x height)
The weight of the
1.1 kg
1.1 kg
