print
Way of print
thermal
The resolution of the
203 dpi
Print width
104 mm
The printing speed
Maximum 8 inch/s; Ordinary 4 inch/s
memory
DRAM: 8M FLASH: 4M
Print head temperature detection
thermistor
Print head location detection
Micro switch
Paper detection
Photoelectric sensor

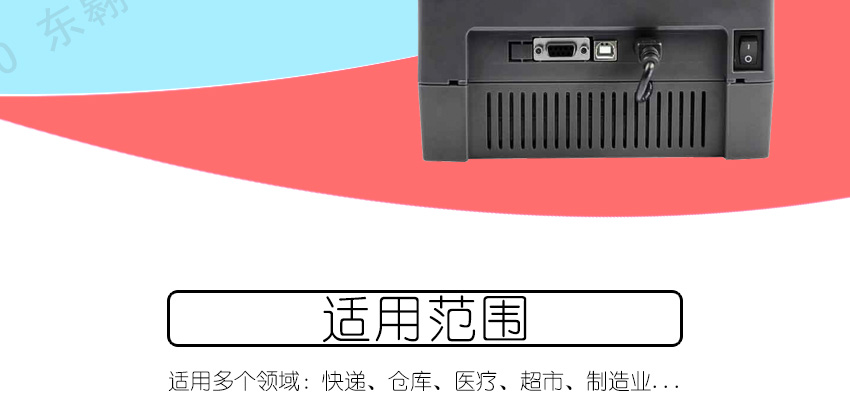

Communication interface
A serial port + USB
The barcode
character
graphics
The barcode
One-dimensional bar code: CODE128, EAN128, ITF,
CODE39, CODE93, EAN13,
EAN13 + 2, EAN13 + 5, EAN8,
EAN8 + 2, EAN8 + 5, CODABAR
, POSTNET, upc-a, upc-a + 2,
Upc-a + 5, upc-e, upc-e + 2,
Upc-e + 5, CPOST, MSI,
MSIC, PLESSEY, ITF14, EAN14
2d barcode: QRCODE
Character set
Use single verse: FONT 0 to FONT 8
Character amplification/rotation
Transverse longitudinal all but 1-10 x magnification, rotary printing (0 ° and 90 °, 270 °, 360 °),
graphics
Monochrome PCX, BMP and other image files can be downloaded to FLASH, DRAM
medium
The paper type
Heat sensitive roll paper, adhesive paper, folding sheet paper, etc
Medium width
40 mm to 120 mm
Paper roll diameter
Maximum 130 mm
The way of paper
Tear off
The power supply
The input
24 VDC, 2 a
appearance
Physical properties
88mm (length) x190mm (wide) x150mm (high)
