Printing mode heat transfer/heat transfer
Resolution 203 dpi (8 dots/mm)
Print speed 7 IPS (177 mm/s)
Print width 4.09 "(104 mm)
Print length Min. 0.51 "(13 mm); Max. 180" (4572 mm)
Memory 4MB Flash / 16MB SDRAM
The sensor form is left in shape and the reflection is transmitted

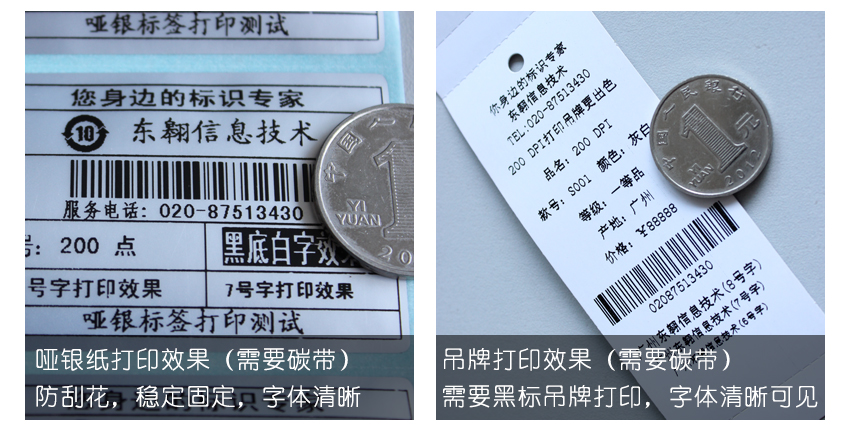

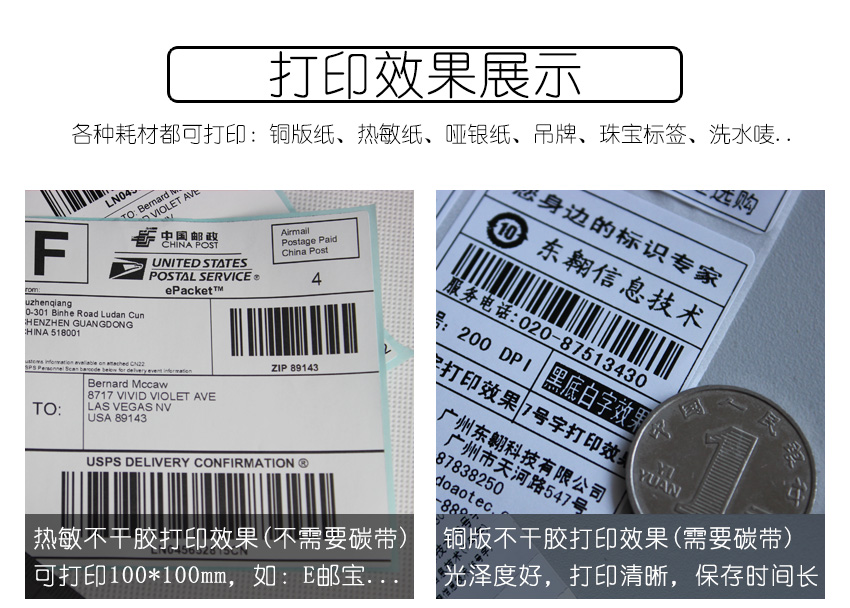

Material specifications paper type: back rubber label paper, between the black mark paper, continuous or folding label paper, no receipt of back glue paper, label length can be manually or automatically detects command control
Paper width: 25.4 mm (1 inch) ~ 118 mm (4.64 inch)
Paper thickness: 0.06 mm (0.003 inch) ~ 0.25 mm (0.01 inch)
Outside diameter: 203 mm (8 ") diameter
Paper roll core: 38.1 mm (1.5 inch) / 76.2 mm (3 ")
Carbon belt specifications: the type of waxy, mixed, and anti-scrape resin
Length: 450 m (1,471 feet)
Width: 30 mm to 110 mm (1.18 inches to 4.33 inches)
Maximum external diameter: 76 mm (2.99 ")
Shaft core: 25.4 mm (1 inch)
Programming Language EZPL GEPL (Godex Eltron ® Printer Language), GZPL (Godex Zebra ® Printer Language)
Random software typesetting software: QLabel IV (supporting EZPL only)
Driver & DLL: support Microsoft Windows 2000, XP and Vista
Built-in Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts print direction can rotation Angle for 0 °, 90 °, 180 °, 270 °, the font can be single rotation Angle for 0 °, 90 °, 180 °, 270 °
Bitmap fonts can be magnified eight times horizontally or vertically
Vector fonts (scalable font), rotation Angle for 0 ° and 90 °, 180 °, 270 °
Download the font Bitmap fonts, downloadable print direction can rotation Angle for 0 °, 90 °, 180 °, 270 °. Font rotation Angle for 0 ° and 90 °, 180 °, 270 °, can be horizontal or vertical amplifier 8 times
Asia downloadable fonts, print direction can rotation Angle for 0 °, 90 °, 180 °, 270 °, can be horizontal or vertical amplifier 8 times
Downloadable vector fonts (scalable font), the print direction can rotation Angle for 0 °, 90 °, 180 °, 270 °
Bar code 1 - D Bar codes:
Code 39, the Code 93, Code 93 (subset of A, B, C), UCC/EAN - 128 - K Mart, UCC/EAN - 128, UPC A/E (add on 2 & 5), the I 2 of 5, the I 2 of 5 with Shipping Bearer Bars, EAN 8/13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI Mod 10 (1), the Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar
2-d Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code
CODEPAGE 437, 850, 851, 852, 855, 857, 861, 862, 863, 865, 866, 869, 869, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255
Unicode (UTF8, UTF16)
Graphics processing support monochrome PCX, BMP, and other diagram file types can be supported by software control
Serial port: rs-232 (db-9)
USB port: V2.0
CF card slot (maximum support of 1G, with the EZPL command formatted as FAT16)
10/100 Mbps adaptive Ethernet card (network card and USB cannot be used at the same time)
Control panel backlit LCD display: 128 * 64dots graphical interface LCD
Three monochrome LED lights: Power, Ribbon, Media
Three groups of multi-function hard body control keys: FEED, PAUSE, CANCEL
Power supply 100-240vac, 50-60hz (dc automatic switching power supply generator)
The timing device Standard
Working environment temperature operation: 41 ° F to 104 ° F (5 ° C to 40 ° C)
Storage temperature: - 4 ° F to 122 ° F (20 ° C to 50 ° C) -
Humidity: 30-85%, non-condensing.
Storage humidity: 10-90%, non-condensing.
BSMI, CE (EMC), FCC Class A, CB, cUL, GS, CCC
Body size: 20.15 "(512mm)
Height: 11.45 (291 mm)
Width: 10.78 "(274mm)
The body weighs 15 kilograms
Select the knife of the purchase item
Automatic stripper and back roll
Parallel port/PS2 expansion card
Automatic labelling machine interface (digit in * 1, digit out * 3, 5 V * 1/500ma)
Packing specification
USB, power cord, carbon belt recycled paper, test carbon belt, test label paper, installation of VCD, quick guide manual
Please refer to the original purchasing unit. If the above specifications are subject to change, the actual shipment shall be given priority to; No further notice.
* all trademarks mentioned above belong to the original company
