Printing mode heat transfer/heat transfer
Resolution 300 dpi (12 dots/mm)
Printing speeds up to 7 IPS (177 mm/s)
Print width 104 mm (4.09) ~ 105.7 mm (4.16)
Print length 4 mm (0.16 ") * * 2159 mm (85 ")
Processor 32-bit high-performance microprocessors
Memory Flash: 128 MB Flash (user capacity is 60 MB)
32 MB SDRAM:
Sensor form reflector sensor: portable left aligned
Transparent sensor: portable left aligned

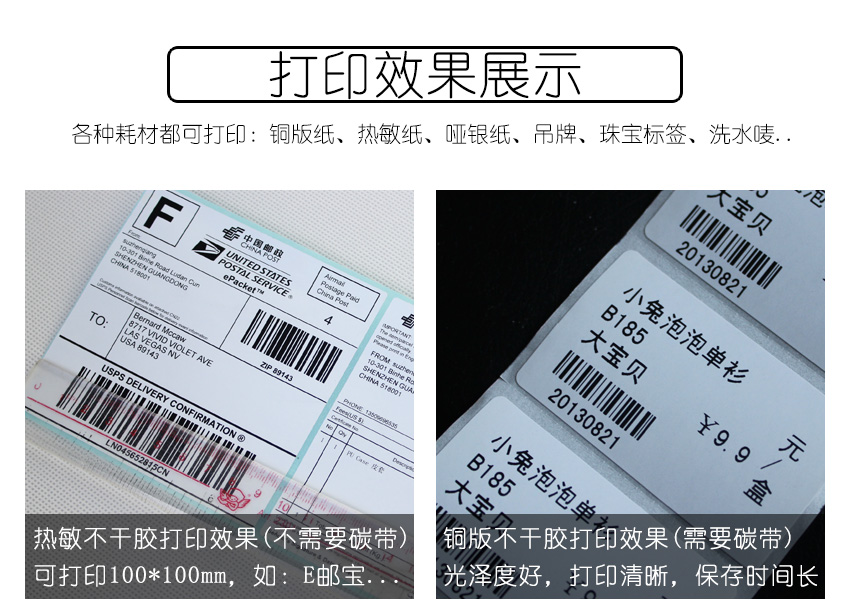

Material type: continuous paper, spacing label paper, black line mark paper or punch paper, the label length can be automatically detected or manually controlled
Paper width: 25.4 mm (1) ~ 118 mm (4.64)
Installation cutter: maximum 117 mm (4.61)
Install the paperless/back paper recycler: the maximum 118 mm (4.64)
Paper thickness: 0.06 mm (0.003) ~ 0.25 mm (0.01 ")
Outside diameter: 203.2 mm (8 ")
Paper reel core: 38.1 mm (1.5 ") ~ 76.2 mm (3)
Carbon ribbon specification material: common waxy base type, mixed type, anti-scrape resin type
Length: 450 m (1471)
Width: 30 mm (1.18) ~ 110 mm (4.33)
Maximum size: 76.2 mm (3)
Shaft core: 25.4 mm (1)
The program language, EZPL, GEPL, GZPL, can be automatically switched
Random software label editing software: GoLabel (just for EZPL)
Drivers: Windows 2000, XP, Vista, Win7, Windows 8, and Windows Server 2003 and 2008
DLL: Windows 2000, XP, and Vista
Built-in Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16x26, and OCR A&B
Print direction can be rotation Angle for 0 ° and 90 °, 180 °, 270 °, the font can be single rotation Angle for 0 ° and 90 °, 180 °, 270 °, and can be horizontal or vertical amplifier 8 times
Vector (the vera.ttf font) : can rotation Angle for 0 ° and 90 °, 180 °, 270 °
Download a font Bitmap fonts: Bitmap fonts, downloadable print direction can rotation Angle for 0 ° and 90 °, 180 °, 270 °, fonts can be single rotation Angle for 0 ° and 90 °, 180 °, 270 °, and can be horizontal or vertical amplifier 8 times
Asian fonts: Asia downloadable fonts, print direction can rotation Angle for 0 °, 90 °, 180 °, 270 °, the horizontal or vertical amplifier 8 times
Vector fonts: downloadable vector fonts (the vera.ttf), print direction can rotation Angle for 0 ° and 90 °, 180 °, 270 °
Bar Codes - 1 D Bar Codes: Code 39, Code 93, 8/13 (add on 2 & 5) EAN, UPC A/E (add on 2 & 5), the I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (Subset A, B, C), 128, EAN RPS 128, 128, UCC UCC/EAN - 128 - K Mart, the Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar 2-d Bar Codes: PDF417, Micro PDF417, Datamatrix Code, Maxicode, QR Code, Micro QR Code and Aztec Code
Codepage 437, 850, 851, 852, 855, 857, 861, 861, 863, 863, 865, 865, 863, 869, 737 Windows 1250, 1251, 1252, 1253, 1254, 1255, 1255, 1255, 1257, Unicode (UTF8, UTF16).
The graphics processing default supports monochrome PCX, BMP, and other image formats can be processed by software

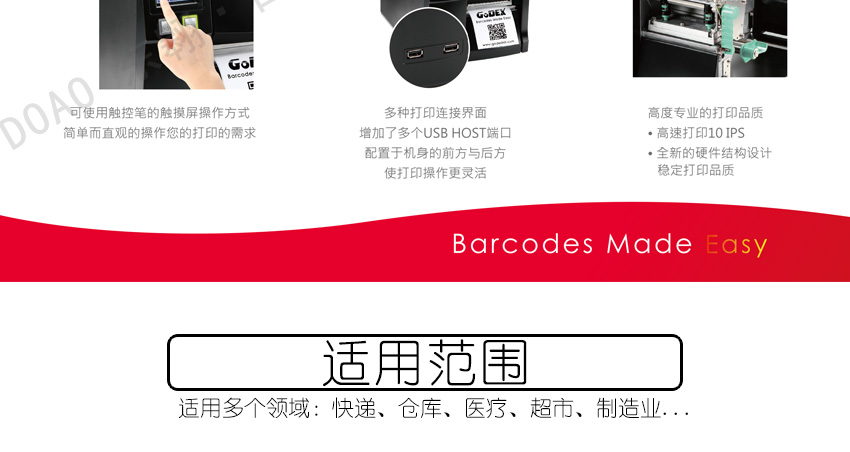

Communication interface • USB 2.0 port (b-type)
• rs-232 (db-9) serial port
• IEEE 802.3, 10/100 base-tx (rj-45) network ports
• an extensible USB 2.0 interface: USB Host (a-type), front 2, and 1

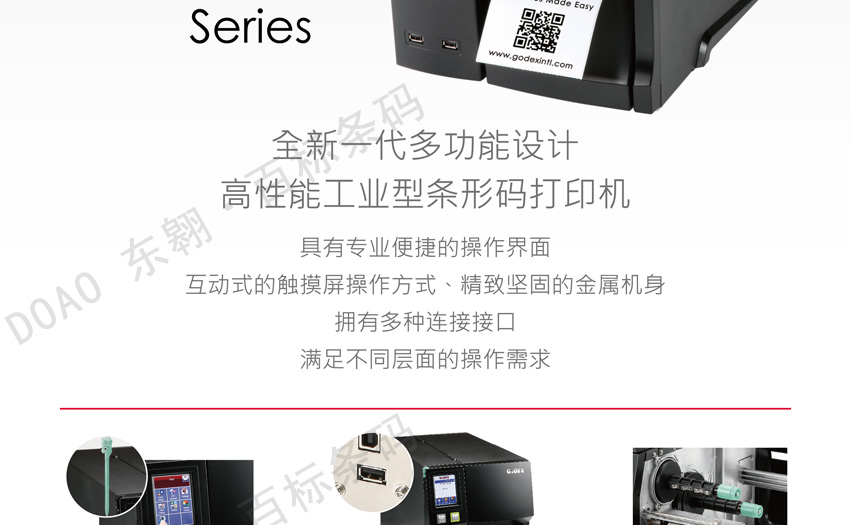

Control panel • 3.2 "color touch operation panel, including touch pen
• paper detection keys
• a set of multifunction control keys: FEED/PAUSE/CANCEL, paired with LED backlit indicator lights: standby (green), error (red light)
• power supply/key
Power supply 100-240v AC, 50-60hz (dc automatic switching power supply generator)
The timing device is built in standard
Working environment temperature operation: 41 ° F to 104 ° F (5 ° C to 40 ° C)
Storage temperature: - 4 ° F to 122 ° F (20 ° C to 50 ° C) -
Humidity: 30-85%, non-condensing
Storage humidity: 10-90%, non-condensing
(EMC), FCC Class A, CB, cUL, CCC, gost-r, KC
Body size: 465 mm (18.30)
Height: 308.20 mm (12.13)
Width: 270.71 mm (10.65)
The body's weight is 13.6 kg (30 LBS) with no other materials and accessories.
Selection of a knife (plant installation)
Parallel port (IEEE1284)
Bluetooth wireless module
WiFi wireless module (IEEE 802.11b/g/n)
Automatic stripping and back paper recycler (factory installation)
Automatic pasting machine interface connections (1 input, 3 outputs, power 500mA @5v, for project base)
The external paper holder (the maximum size of the paper volume is 250 mm / 10)
External forward/backward reels
RFID read/write modules (project options)
You don't need to use the patent carbon with the paper tube to bring back the coil (factory installation)
Please consult the original purchasing unit for the purchase item. The above specifications are subject to change without prior notice. All trademarks listed above are owned by the original company.
The actual printing size and printing speed should be determined according to the actual consumables.
