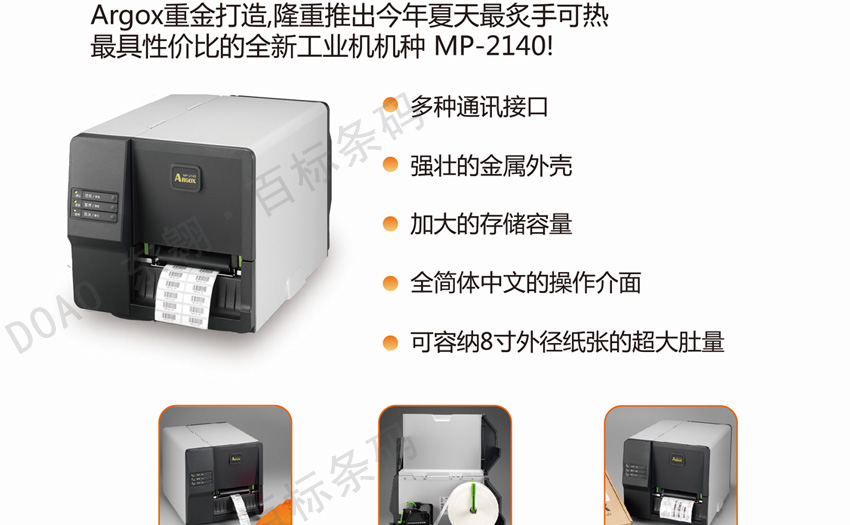

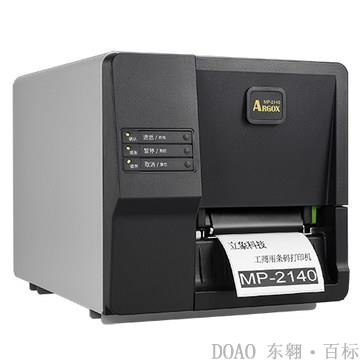

MP - 2140 barcode printer technical parameters
Printing mode heat sensitive/heat transfer
Resolution 203 dpi
Up to 4 ips
The maximum printing length is 100 inches (2,540mm)
Maximum print width 4.1 inches (104mm)
memory
8MB of memory (available for 5MB users)
8MB flash memory (6MB user is available)
CPU 32-bit RISC microprocessors
sensors
Reflective paper sensor x 1 (removable)
The paper penetrative sensor (fixed)/print head module raises the sensor/carbon sensor
Operation interface
LED indicator x 3 (confirmation/paper/carbon strip),
Key * 3 (paper/pause/cancel)
The communication interface and the serial port (rs-232, the transmission rate is highest to 115200bps), USB
Printer language, PPLB
One-dimensional, UPC barcode Code 39, UPC - A - E, 128 subsetA/B/C Code, EAN - 13, the EAN - 8, HBIC, Codabar, Plessey, UPC2, UPC5, Code, Postnet, UCC/EAN - 128, 93, the UCC/EAN - 128 - K MART, UCC/EAN - 128 Random weight, Telepen, FIM, Interleaved 2 of 5 (Standard/with modulo 10 checksum/with human readable check digit/with 10 checksum modulo & shipping bearer bars, GS1 Data bar (RSS)
The 2d Barcode MaxiCode, PDF417Data Matrix (ECC 200 only), QR code, Composite Codes, Aztec Barcode, Micro PDF417
Software-label editing
Windows driver (Windows 7 / Win 8 / Win 10/vista/XP)
Label making software - BarTender
Software - commonly used tool Print Utility, Font Utility
Paper type paper type, label type (spacing paper, continuous paper, folding paper, ticket, hang... etc.)
Paper specifications
Maximum width: 11 cm
Minimum width: 2.54 cm
Thickness: 0.00635 to 0.0254 cm
Maximum diameter: 20.3 cm
Inner diameter: 2.54 cm / 3.81 cm / 7.62 cm (internal and external volumes apply)
Carbon with specifications
Maximum diameter of carbon coil: 6.7 cm
Carbon is the maximum length: 300m
The diameter of the carbon belt shaft: 2.54 cm
Carbon band width: 1 to 4 inches, waxy, semi-wax and semi-resins, whole resin (both inside and outside)
9 kg weight
Dimensions 282.7 mm (wide) x 285.4 mm (high) * 466.6 mm (long)
The power supply voltage automatic switching power supply generator is 100 ~ 240V, 50-60hz
Accreditation CE, FCCcTUVus, CCC, RoHS
The operating environment
Operating temperature: 40 ° F to 100 ° F (4 ℃ ~ 38 ℃) (relative humidity: 10% ~ 90%)
Storage temperature: - 4 ° F to 122 ° F (20 ℃ to 50 ℃) -
Optional accessories
Paper frame, timer RTC, rotary knife, blade
