The product name

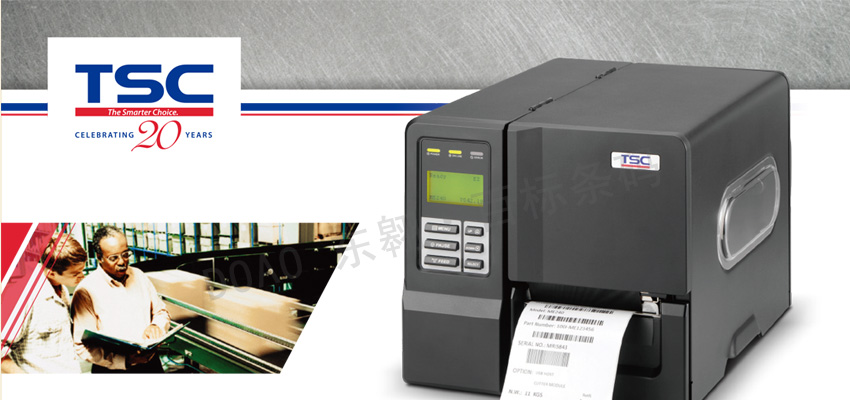

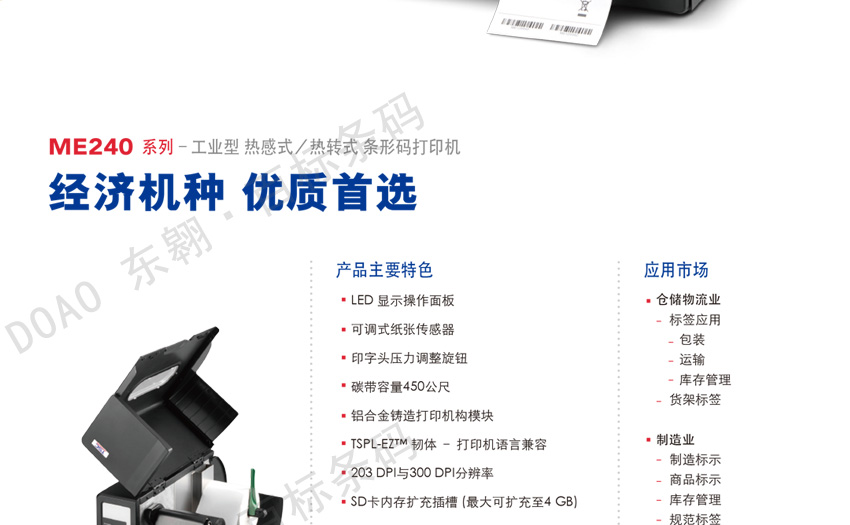

ME240 / ME340
Print pattern
Heat transfer/heat inductance
resolution
8 points/mm (203 DPI), 12 points/mm (300 DPI)
Print speed
152mm (6 ")/second, 102mm (4 ")/second
Maximum print width
1010mm (4.09 ")/second, 104mm (4.09 ")/second
Maximum print length
2, 286 mm (90)/second, 1, 016 mm (40 ")/s
Central processing unit (CPU)
32-bit efficient processors
memory
• 4 MB Flash memory
• 8 MB SDRAM
The SD card memory expansion slot can be extended to 4 GB
The sensor
• paper spacing sensor (penetration, position adjustable)
• black line marker sensor (reflective, adjustable position)
• the carbon band runs out of sensors
• raise the sensor in the print head
The shell
Aluminum alloy casting mechanism module/metal case, transparent large window design
Operation panel
A power switch and two operation buttons (Pause, Feed)
size
286 mm (wide) x 259 mm (high) x 434mm (long)
11.26 (wide) x 10.20 (high) x 17.09 (long)
Instruction set
Tspl-eztm (compatible with EPL, ZPL, ZPL II)
Communication interface
• serial port (rs-232)
• USB 2.0
• built-in Ethernet server (optional)
• USB host, which supports single machine operating keyboard and bar code scanner (optional)
• Parallel port (Parallel) (optional)
• bluetooth (customer selection)
• 802.11b/g/n wireless network transmission (customer selection)
accessories
Windows volume editing software, driver, and operation manual
• quick installation guide
• USB transmission line
• the power cord
• carbon recycled paper cartridge
• outside wall 3 "paper reel x 2
Operating temperature
Operating environment: 5 ~ 40 ° C, humidity (condensation) 25 ~ 85%
Storage temperature
Storage environment: - 40 ~ 60 ° C, humidity (condensation) 10 ~ 90%
Environment specification
Accord with RoHS, WEEE
Weight (including battery)
11kg (24.25 pounds)
Dealer selection
• the tag dissection sensor
• knife cutter (complete cut)
Waterproof and waterproof specifications
IP54 (for protective bags)
Safety certification
FCC Class A, CE Class A, c-tick Class A, UL, CUL, TUV/Safety, CCC
The thickness of the paper
0.06 ~ 0.28mm (2.36 ~ 11mm)
The paper type
Continuous paper, spaced paper, perforated paper, folded paper, black label (outer volume)
The paper width
25.4 ~ 118 mm (1.0 ~ 4.6)
Maximum roll size
203.2mm (8 ") outside diameter, 25.4 ~ 76.2 mm (1 "~ 3") paper scrolls
The barcode
• one-dimensional bar code
Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN -8, EAN -13, EAN -128, upc-a,
Upc-e, EAN and UPC 2 (5) digits add - on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11, Logmars
• 2d barcode
Pdf-417, Maxicode, DataMatrix, QR code, Aztec
Internal font
• eight bitmap fonts
• a Monotype ® CG Triumvirate Bold Condensed vector fonts and True Type Font Type generator
• use software to download Windows fonts
The factory equipped with
• LCD operating panel, display 128 X 64
• built-in Ethernet servers
• USB host (supports single-machine operating keyboard and bar code scanner)
• Parallel port (Parallel)
Customer optional
Bluetooth wireless transmission module (serial port interface)
• 802.11b/g/n wireless network module (serial port interface)
• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS)
